High Quality Aluminum Sand Casting Gallery

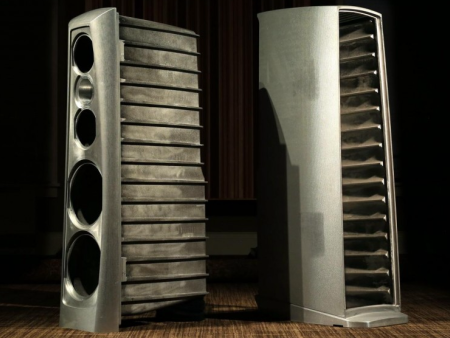

These air set sand cast aluminum speaker enclosures are about 48″ tall, and each enclosure is made of 2 aluminum castings weighing about 180lbs with a 3/8″ wall thickness. These

Our aluminum sand foundry specializes in manufacturing aluminum sand castings with intricate internal passageways which helps reduce the amount of machining required to create a finished air tool handle, air

These small aluminum sand castings are various cover castings manufactured in a variety of alloys for several applications. The weights for these small cover castings are .55lbs, .78lbs, and .47lbs.

On the left is a .88 pound hollow thin wall fuel line elbow aluminum sand casting poured in 355 aluminum alloy. The center aluminum casting is a 1.28 pound hollow

This .62lbs custom aluminum sand casting is an ornamental golf tee marker that we manufacture in our aluminum sand foundry, and can be customized with special inserts to display your

The aluminum sand casting on the left is 1.78 pounds and made with A356-T6 aluminum alloy producing a shell cored, right angle gearbox. The A356-T6 aluminum casting towards the right

These 319 sand cast aluminum gear reducer housings are manufactured in our aluminum sand foundry for a wide variety of gear reduction applications. These types of gear reducer aluminum sand

These cast aluminum gear reducer housings that we manufacture weight in at 8.69 and 2.27 pounds. These gear reducer housings are lower volume production castings and use the no bake

The aluminum sand castings in the back are produced with the 713 aluminum alloy, trade name “Tenzaloy” and are manufactured for commercial overhead doors. The aluminum sand casting in the

This 8.5 pound aluminum sand casting uses a complex shell core to manufacture the valve body’s internal passage ways in our aluminum sand foundry. The sand castings are later machined

Using our no bake, or air set sand mold equipment we manufacture this large aluminum sand casting which is an agricultural blower housing This large aluminum casting weighs 15 pounds

This large aluminum sand casting was produced using our large no bake, or air set sand mold process and was later machined at Alcast Company’s CNC Aluminum Casting Machine Shop.

This large aluminum sand casting weighs in at 54 pounds and is nearly 24″ wide. This large aluminum casting is manufactured using our high quality large no bake, or air

The aluminum sand casting on the left is a 1.72 pound adapter bracket for motor to gearbox attachment in 319 aluminum alloy and is pictured as-cast. On the right is

These aluminum sand castings are some of the larger sized hollow aluminum elbow tubes weighing in at 3.98lbs that we produce in our aluminum sand foundry.
